Remote operation
Operate compatible valves from a mobile app or PC management platform.
CONNECTED IRRIGATION / 01
3 Way Motorized Ball ValveThree ways to flow.
One smarter system.
3 way motorized ball valve for connected irrigation. Direct water between zones, coordinate your pump and manage watering from your phone.
Mobile control4G connectivityLoRaWAN option*
*LoRa is shown in the supplied material. LoRaWAN protocol compatibility and regional frequency must be confirmed for the ordered version.
3-WAY4G / LoRa
01 / Overview
Control the water. Simplify the work.
Scheduled irrigation
Plan watering cycles and coordinate multiple irrigation zones.
Pump coordination
Link compatible pump controllers and valves for coordinated operation.
Field feedback
Integrate soil sensors, flow meters and pressure switches with compatible equipment.
02 / How it works
From the field to your phone.
Choose a cellular connection or a gateway-based radio network for your installation.
- 01Soil · Flow · Pressure
- 02Smart valve + pump controller
- 034G direct / LoRa gateway
- 04Cloud · Mobile app · PC
Explore irrigation modes
Illustration: route water to the first irrigation zone.
Illustration: route water to the second irrigation zone.
Illustration: water two zones on compatible dual-output versions.
Flow illustration only. Port mapping, simultaneous opening and shut-off depend on the valve mechanism; confirm before ordering.
03 / Specifications
Built around your installation.
The supplied material describes a product family. Confirm the exact body, connection and controller combination for your order.
| Parameter | Available information |
|---|---|
| Product | Motorized three-way irrigation valve |
| Connectivity | 4G or LoRa; LoRaWAN version to be confirmed |
| Control | Mobile app + PC platform; compatible system required |
| Body options | UPVC / reinforced nylon / PP, depending on model |
| Three-way PP model | Inlet 90 / outlet 90, as marked in the source |
| Other family connections | Inlet 110/90; outlet 90/75, depending on model |
| Pressure / flow feedback | Dual electronic pressure; flow on selected models |
| Power / standby | Solar-equipped option; source claims up to 60 days without sun, test conditions unverified |
| Gateway range | Source claims 2–5 km radius; terrain and installation dependent |
| Pump controller | 220 V single-phase / 380 V three-phase options; separate accessory |
| Confirm before order | Port units and standard, L/T bore, pressure rating, voltage, torque, IP rating, temperature, battery and radio bands |
A valve for each part of your network.
Different configurations are shown; features are not shared by every model.

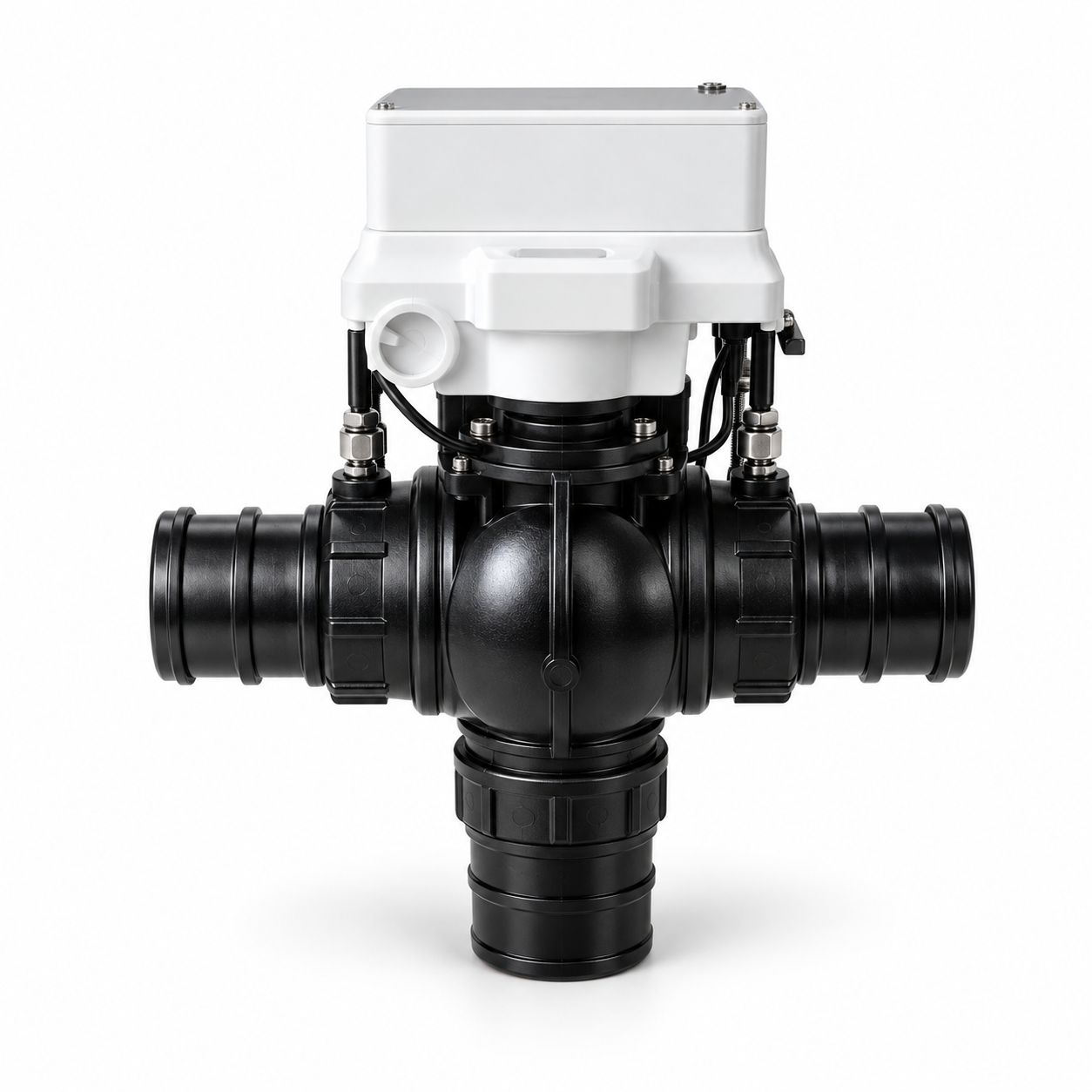

Three-way valve
Original product reference
Compact valve configuration

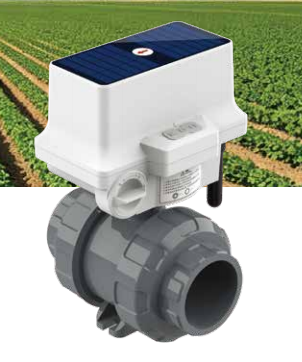

Solar-equipped valve
4G / LoRa

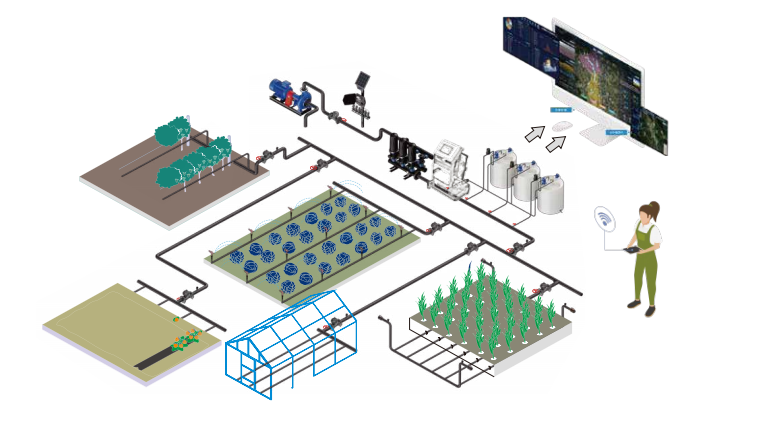

One connected irrigation network.
Connect field zones, a compatible pump controller and monitoring equipment. Support coordinated irrigation, fault alerts and operating reports through a compatible platform.
Frequently asked questions
01Can I control the valve from my phone?
Compatible configurations support a mobile app and PC platform. Confirm the app, supported phone systems and account setup with the sales team before ordering.
02Should I choose 4G or LoRaWAN?
Consider 4G where cellular coverage is available. For a gateway-based installation, discuss the radio network with the team. The supplied material specifies LoRa; LoRaWAN compatibility, gateway support and regional frequency need confirmation.
03Does it need a SIM card or a gateway?
A 4G configuration requires compatible cellular service; confirm SIM provision and data charges. A LoRa configuration uses a compatible gateway. Confirm which accessories and services are included in the quotation.
04Can the two outlets open at the same time?
Some dual-output versions support individual or simultaneous opening. This is not guaranteed for every three-way valve. Confirm the port diagram, L/T bore and available switching positions for the selected model.
05Can I set watering schedules for several zones?
The supplied solution describes scheduled, coordinated irrigation. Confirm the number of supported valves, scheduling functions and platform requirements for your installation.
06How is the valve powered?
A solar-equipped configuration is shown. Battery capacity, charging requirements and operating time vary by version. The source claims up to 60 days without sun, but test conditions are not verified.
07Which pipe sizes and connections are available?
The PP three-way model is marked inlet 90 and outlet 90. Other models show inlet 110/90 and outlet 90/75. Confirm units, actual connection dimensions and connection standards before ordering.
08Can it work with a pump and sensors?
Compatible equipment can integrate pump control, soil sensors, flow meters and pressure switches. These are system options; confirm compatibility and whether they are included or quoted separately.
09What happens if power or the network is lost?
Do not assume the valve closes automatically or continues a schedule. Fail-safe position, local schedule storage and recovery behaviour must be confirmed for the selected controller and valve.
10What information do you need for a quotation?
Send quantity, pipe dimensions, water pressure, water temperature and quality, country, power source and preferred connectivity. The team can then confirm the model, specifications, included accessories, pricing, lead time and warranty terms.
SHENZHEN · CHINA
Talk to the team in Shenzhen.
Shenzhen Jinshengchang Technology Co., Ltd. is the company contact for this product enquiry. Contact the team to discuss valve selection, communication options and irrigation system requirements.
深圳市金盛昌科技有限公司
Shenzhen Jinshengchang Technology Co., Ltd.
04 / Contact
Let’s configure your irrigation project.
Share your pipe size, water pressure, country and preferred connectivity so the team can confirm a suitable configuration.
